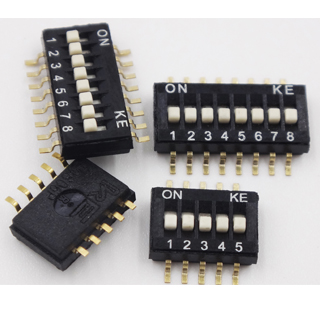

In order to meet the various needs of consumers, the governor of industrial experiments and successfully developed a new DIP switches.
Product performance:
1. Rated current: switching current 25 mA, 24VDC, do not switch current 100mA, 24VDC.
2. Contact impedance: the initial value of 50 milliohms, 100 milliohms after the test.
3. Insulation resistance: 100ΩMin at 500 VDC.
4. Pressure value: between the row of feet input ac 500v (50 ~ 60 Hz) voltage, one minute induction current of 2m (A).
5. Operation intensity: 1000gfMAX.
6. Life test: 3000 cycles.
product material:
1. Cover and body: engineering plastics meet UL94V-0 fire rating of high temperature material, (PPS) black.
2. Push button: engineering plastic in line with UL94V-0 fire rating of high temperature material, (PA46) white.
3. Fixed contact with movable contact: copper alloy gold plated; pin: copper alloy gold-plated.
4. Foot pitch: 1.27mm
Welding method:
1. Hand welding: no more than 350 degrees Celsius no more than three seconds or 270 degrees Celsius within 5 seconds.
2. Reflow: 260 degrees ± 5 degrees within 10 seconds, please put the push button in the "OFF" position during welding and cleaning.
Packaging: IC tube or package。
